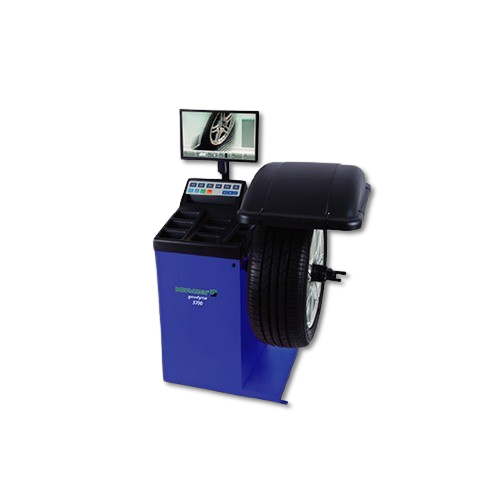

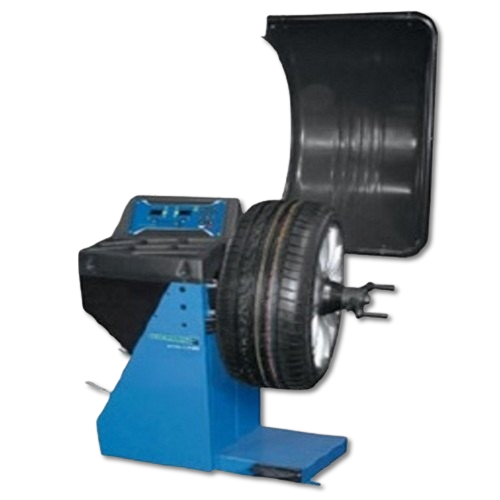

BLUE POINT WHEEL BALANCER SYSTEM - MWB100

 FEATURES

•  Simply start measuring run by closing of wheel guard or pressing START key
•  Optimization, spoke mode with hidden weight function and EASYALU mode
•  19“ color monitor
•  10 weight compartments with ample space in weight storage and within easy reach of the operator
•  User-friendly graphical interface
•  Motor drive with V-belt for constant rotational speed during measuring run
•  Perfect solution to optimize the working space
•  2D Semi Automatic Parameter Entry (SAPE)
•  Simply start measuring run by closing of wheel guard or pressing START key
•  Hidden weight mode (HSP)
•  Weight tray with 10 weight compartments
•  Motor drive with V-belt for constant rotational speed during measuring run
•  Weight minimization
•  Compact foot print occupying minimum floor space
•  In ALU modes (ALU2P and ALU 3P) accurate location of weight position inside the rim with gauge arm

SPECIFICATIONS

• RPI Technology - 2D, 1D
• 1D SAPE - 2D, 1D
• 2D SAPE - 2D
• Gauge Arm With Wheel Weight Positioning - 2D, 1D
• LCD Monitor - 2D
• ALU Mode - 2D (5), 1D (5)
• ALU 2P & ALU 3P Mode - 2D, 1D
• Pax Mode - 2D, 1D
• Weight Minimization - 2D, 1D
• Wheel Guard - 2D, 1D
• Rim Centre Core Diameter - 43 - 116mm
• Shaft Diameter - 40mm
• Measuring Speed - ~20rpm
• Measuring Time - 6 - 10s
• Rim Width (Dynamic) - 1"-16" (3" - 16")
• Rim Diameter - 12" - 22"
• Max. Wheel Width With Wheel Guard - 400mm
• Max. Wheel Diameter With Wheel Guard - 880mm
• Max. Wheel Diameter Without Wheel Guard - 1016mm
• Max Wheel Weight - 65kg
• Dimensions (L x W x H) - 1111 x 1036 x 1633 mm
• Weight - 89kg, 84kg
• Power Supply - 200-240V, 1Ph, 50-60 Hz

ACCESSORIES - STANDARD - PART NUMBER

• Quick Nut - #EAA0263G66A
• Cone N.4 - #EAM0005D25A
• Cone N.2 - #EAM0005D24A
• Cone N.1 - #EAM0005D23A
• Rim Width Clamp - #EAA0247G21A
• Universal Weight Plier - #SBWP10

ACCESSORIES - OPTIONAL

• Motorcycle Adaptor - #SEAK0221J86A

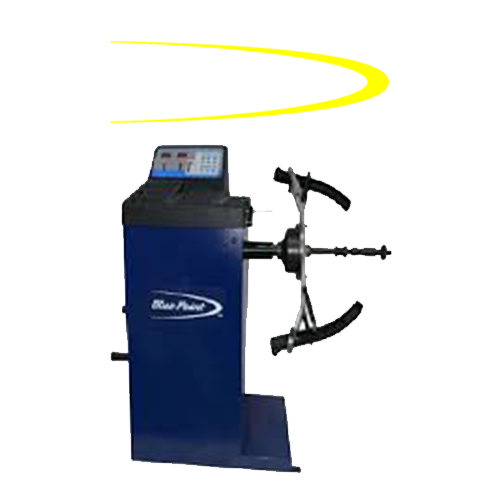

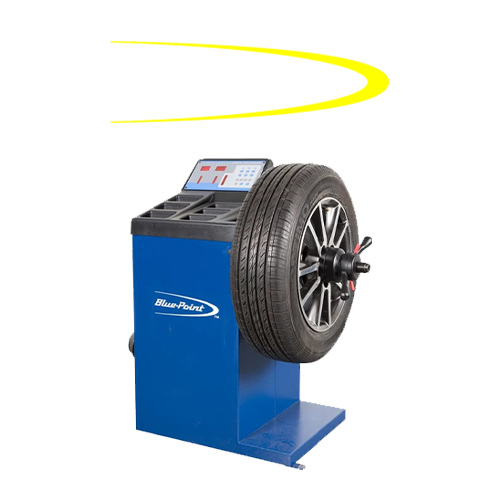

  BLUE POINT WHEEL BALANCER SYSTEM - MWB100 2WL

  FEATURES

•   Digital display
•  1D sape-distance
•  EasyALU
•  Hidden / split weight
•  Optimization
•  Easy identification of ALU mode with bright LEDs indicating selected weight position
•  Convenient 10 pocket molded- weight tray with integrated display panel
•  ALU 2/3p mode for exact weight positioning
•  40 mm shaft diameter for superb stability and balancing of heavy wheels
•  Automatic brakingafter measurment.

 SPECIFICATIONS
