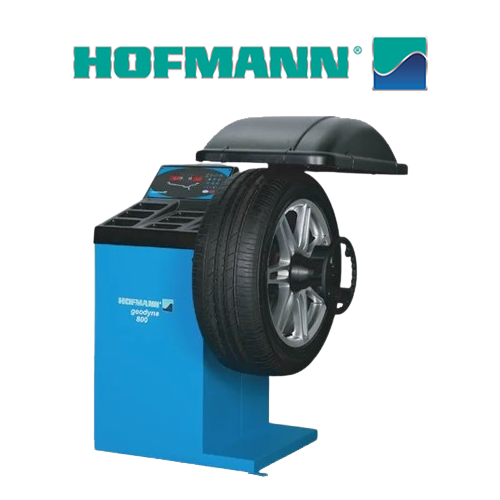

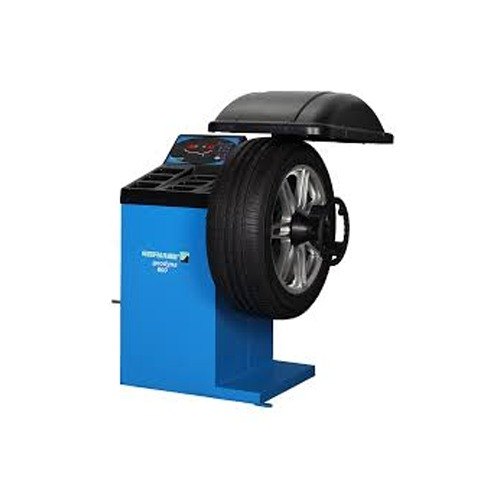

HOFFMAN WHEEL BALANCER - GEODYNA 800

FEATURES

• Motorized wheel balancer
• Manual input of all wheel data
• Conspicuous LED (Light Emitting Display) integrated in wheel tray
• Hidden weight mode
• Optimization mode
• Compact footprint – minimum space requirement
•  Static / dynamic balancing and motorcycle modes

Available with geodyna 810 only

• Resolution Automatic input of distance rim / machine (1D SAPE)
• ALU-2P/3P mode (For special alloy rims)

SPECIFICATIONS

• Measuring Speed -  200 rpm
• Measuring Time -  6-10 s
• Rim Width (Dynamic) 1"  - 16" (3" - 16")
• Mximum Wheel Width -  500 mm (400 mm w/wheel guard)
• Rim Diameter - 12" - 22"
• Maximum Wheel Diameter - 1016 mm (880 mm w/wheel guard)
• Data Entry Manual -  1D SAPE
• Maximum Wheel Weight -  65 kg
• Power Supply -  220–240 V, 1 Ph, 50/60 Hz

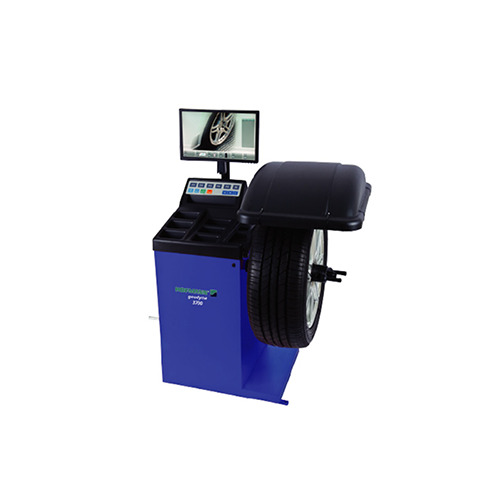

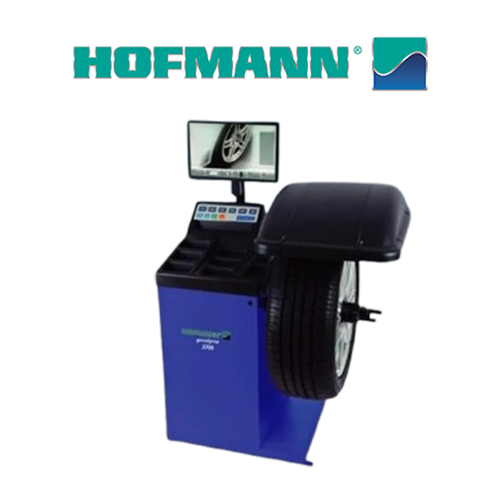

HOFFMAN WHEEL BALANCER - GEODYNA 3700

FEATURES

• Motorised wheel balancer
• Automatic input of distance rim/machine and rim diameter (2D SAPE)
• Manual input of rim width.
• Hidden weight mode and easy ALU mode
• Optimisation mode.
• Compact footprint - minimum space requirement
• Static / dynamic balancing and motorcycle modes Standard Accessories
• Quick Nut
• 3 cones: 42-77mm, 72-99mm and 96-116mm
• Clamping head with ring protector
• Rim width calipers
• Universal weight pliers.

SPECIFICATIONS

• Rim Width - 1-16 inch
• Rim Diameter - 12-22 inch
• Brand - HOFMANN
• Voltage - 220-240 V
• Measuring Speed - 200 rpm
• Resolution - 1g
• Frequency - 50/60 Hz
• Model Name/Number - Geodyna 3700
• Phase - Single Phase
• Maximum Wheel Weight - 65 Kg
• Maximum Wheel Diameter - 1016 mm (880 mm with wheel guard)
• Maximum Wheel Width - 500 mm (400 mm with wheel guard)
• Measuring Time - 6 - 10 s
• Data Entry - 2D SAPE

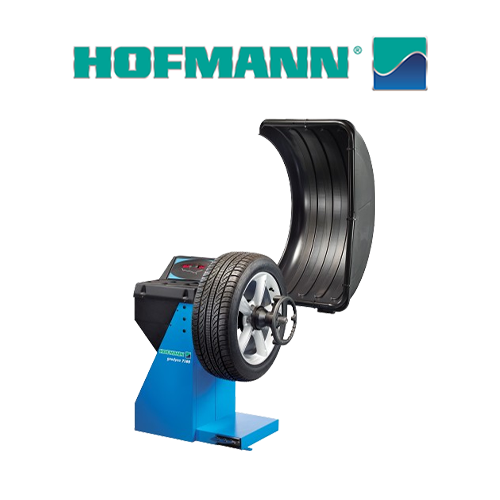

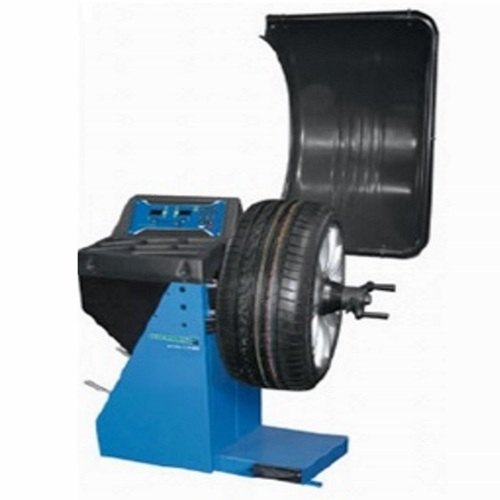

HOFFMAN WHEEL BALANCER - GEODYNA 7100

FEATURES

•   Intuitive digital display.
•   Automatic input of Distance/Diameter.
•   Patented VPI/VPM technology ensures 1 gm Accuracy.
•   Easy ALU: Semi-Automatic pre selection of balancing mode.
•   Gauge Arm with Wheel Weight positioning system.
•   Mechanical Shaft Lock.
•   With Split weight, hidden weight program.
•   Optimization program.

        Specification

• Technical Specification - Unit  B100
• Measuring Speed - RPM  100
• Balancing accuracy - gm 1
• Angular resolution - Degree 0.7
• Measuring time - Seconds 4.5
• Semi-Automatic Parameter Entry
• Rim Diameter - Inch 8-25
• Rim Width - Inch 3-15
• Manual Entry
• Rim Diameter - Inch 8-32
• Offset - Inch 1-20
• Rim Width - Inch 1-20
• Maximum wheel dimension
• Max. Wheel Diameter - Mm 1050
• Wheel width range - Mm 76-508
• Max. wheel weight - Kg  70
• Diameter of shaft - Mm 40
• Length of shaft - Mm 225
• Power supply - V/ph/Hz 230V/1ph/50 Hz
• Dimension (LXWXH) - Mm 1313X868X1834
• New Weight - Kg 120

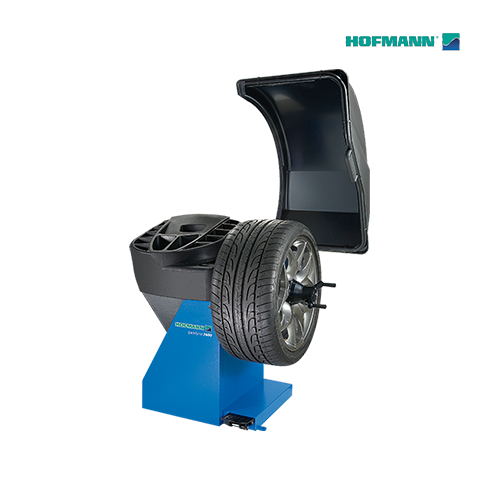

HOFFMAN WHEEL BALANCER - GEODYNA 7300L

  FEATURES

• The wheel balancer for tyre shops, car dealerships and garages with medium to high tyre service volume: with touchscreen monitor and Easy Weight pinpoint indicator light – An accurate, fast and easy solution to position adhesive weights on  wheel.
•  High-productivity wheel balancer
•  Touchscreen monitor with graphical user interface GOLD – improved intuitiveness and ergonomics
•   Easy Weight laser light indicator for fast, accurate and pinpoint placement of adhesive weights on the wheel
•   Semi-automatic input of offset and rim diameter via 2D SAPE and automatic rim width acquisition via Smart Sonar
•  Semi-automatic pre-selection of balancing mode
•   Rim lighting to facilitate rim cleaning and speed up data entry and weight positioning
•   New ergonomic weight tray
•   Imbalance minimisation and optimisation programs
•   VPM measurement technique for uncompromised accuracy
•   QuickBal for reduced measurement time:
•   Short start-stop cycle time: 4.5 seconds (15’’ rim)
•   Clamping of wheel on integrated flange with quick nut

  Specification

•  Motorized - Yes
• Wheel clamping
• Diameter of shaft
• Measuring speed
• Balancing accuracy
• Angular resolution
• Length of shaft

Start/Stop balance time - Check spin - Rim diameter range

• Rim width range
• Max. wheel diameter
• Max. wheel weight
• Input power (amperage)
• Input power (VAC)
• Dimensions LxWxH
• Weight


HOFFMAN WHEEL BALANCER - GEODYNA 7600L

FEATURES

• With torque-controlled Power Clamp device instead of quick nut
• High-productivity wheel balancer
• Touchscreen monitor with graphical user interface GOLD – improved intuitiveness and ergonomics
• EasyWeight laser light indicator for fast, accurate and pinpoint placement of adhesive weights on the wheel
• Semi-automatic input of offset and rim diameter via 2D SAPE and automatic rim width acquisition via Smart Sonar
• Semi-automatic pre-selection of balancing mode via EasyAlu
• Rim lighting to facilitate rim cleaning and speed up data entry and weight positioning
• New ergonomic weight tray
• Imbalance minimisation and optimisation programs
• VPM measurement technique for uncompromised accuracy
• QuickBAL for reduced measurement time: Short start-stop cycle time: 4.5 seconds (15’’ rim)

Specification

• Motorized -  Yes
• Wheel clamping - Power Clamp
• Diametre of shaft - 40 mm
• Measuring speed - < 200 rpm
• Balancing accuracy - 1 g
• Angular resolution - ± 0,35°
• Lenght of shaft - 225 mm
• Start/Stop balance time - Check spin - 4.5 s
• Rim diameter range - 8" - 32"
• Offset range - 1" - 20"
• Rim width range - 1" - 20"
• Max. wheel diameter - 1050 mm
• Max. wheel weight - 70 kg
• Input power (amperage) - 1.1 A
• Input power (VAC) - 230 VAC 1ph 50/60 Hz
• Dimensions LxWxH - 1383 x 878 x 1834 mm

Weight - 115 kg

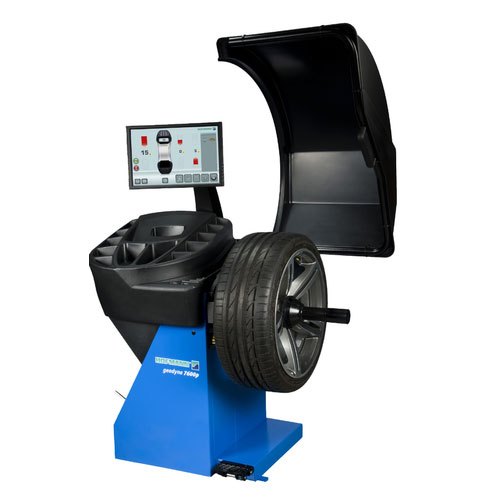

HOFFMAN WHEEL BALANCER - GEODYNA 7600P

FEATURES

• With torque-controlled Power Clamp device instead of quick nut
• High-productivity wheel balancer
• Touchscreen monitor with graphical user interface GOLD – improved intuitiveness and ergonomics
• EasyWeight laser light indicator for fast, accurate and pinpoint placement of adhesive weights on the wheel
• Semi-automatic input of offset and rim diameter via 2D SAPE and automatic rim width acquisition via Smart Sonar
• Semi-automatic pre-selection of balancing mode via EasyAlu
• Rim lighting to facilitate rim cleaning and speed up data entry and weight positioning
• New ergonomic weight tray
• Imbalance minimisation and optimisation programs
• VPM measurement technique for uncompromised accuracy
• QuickBAL for reduced measurement time: Short start-stop cycle time: 4.5 seconds (15’’ rim)

Specification

• Motorized - Yes
• Wheel clamping - Power Clamp
• Diameter of shaft - 40 mm
• Measuring speed - < 200 rpm
• Balancing accuracy - 1 g
• Angular resolution - ± 0.35°
• Length of shaft - 225 mm
• Start/Stop balance time - Check spin - 4.5 s
• Rim diameter range - 8" - 32"
• Offset range - 1" - 20"
• Rim width range - 1" - 20"
• Max. wheel diameter - 1050 mm
• Max. wheel weight - 70 kg
• Input power (amperage) - 1.1 A
• Input power (VAC) - 230 VAC 1ph 50/60 Hz
• Dimensions (LxWxH) - 1383 x 878 x 1834 mm
• Weight - 115 kg

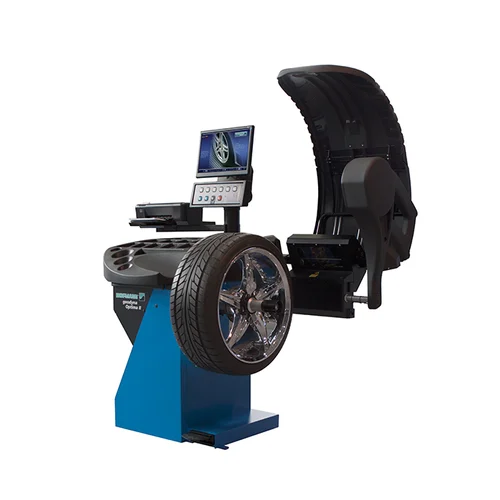

HOFFMAN WHEEL BALANCER - GEODYNA 9000P

FEATURES

• The graphical user interface -  In combination with touch screen, offers an easy menu guidance, a clear overview of information and quicker operation
• Stripe of Light and Optima Technology -  Five high-resolution cameras study the tyre and rim and detect all the wheel dat, a new unique technology.
• Power Clamp - The wheel is precisely clamped with this patented electronic clamping device an essential prerequisite for perfect measurement results.
• Cameras - Five high-resolution laser cameras, one of which is displace-able with 3D laser stripes so that all data can be detected quickly and accurately.
• Power Clamp Device - The electro-mechanical Power Clamp Device always clamps the wheel accurately with a constant force, which is most important for the balancing operation

Specification

·         Motorized - Yes

·         Wheel clamping - Power Clamp

·         Diameter of shaft - 40 mm

·         Measuring speed - < 200 rpm

·         Balancing accuracy - 1 g

·         Angular resolution - ± 0.35°

·         Length of shaft - 225 mm

·         Rim diameter range - 8" - 32"

·         Offset range - 1" - 20"

·         Rim width range - 1" - 20"

·         Max. wheel diameter - 950 mm

·         Max. wheel weight - 70 kg

·         Input power (amperage) - 1.1 A

·         Input power (VAC) - 230 VAC 1ph 50/60 Hz

·         Dimensions (LxWxH) - 1450 x 990 x 1710 mm

·         Weight - 115 kg
